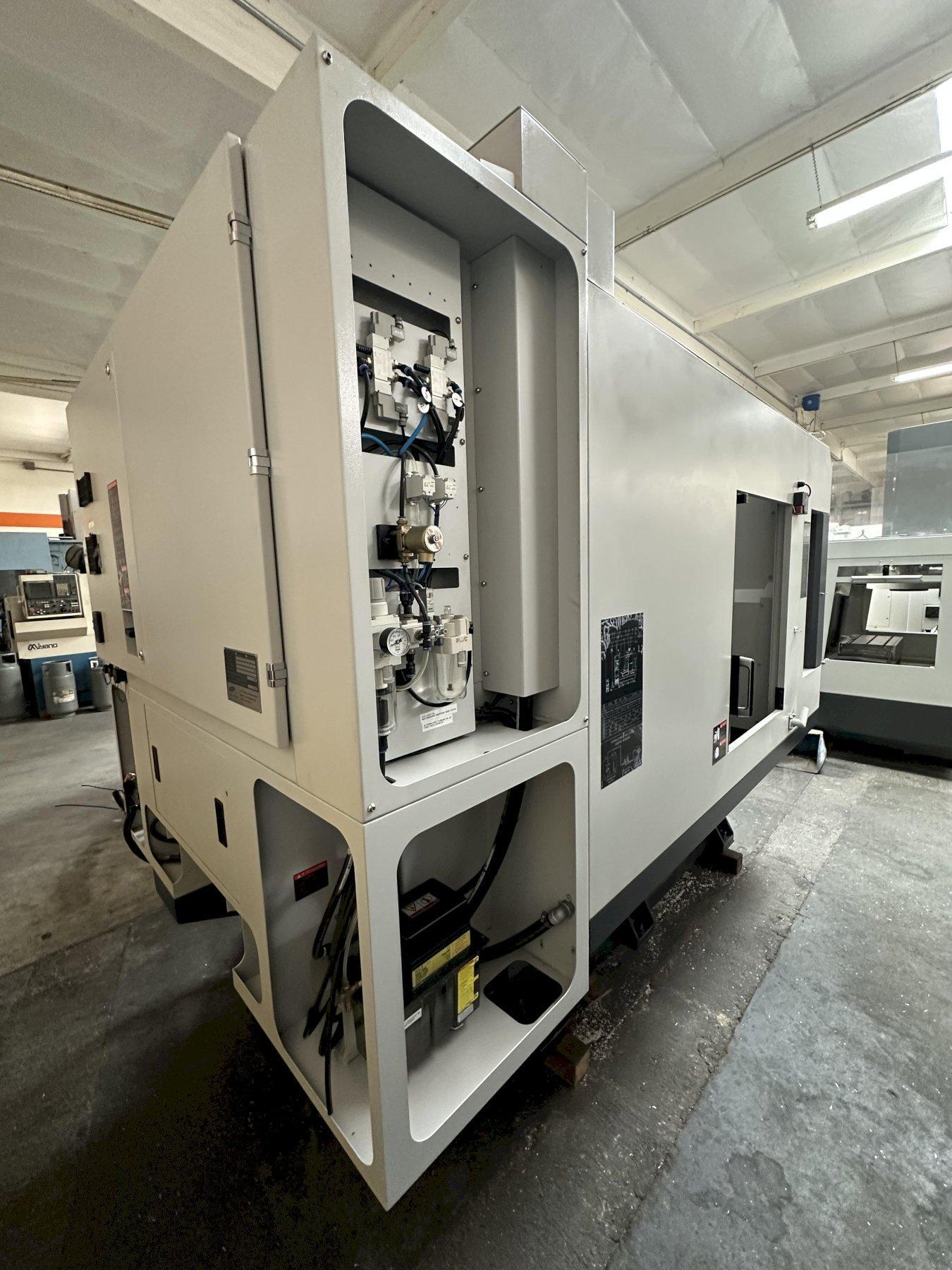

Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
  • Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
  • Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
  • Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
  • Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
  • Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.
  • Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.

Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant.

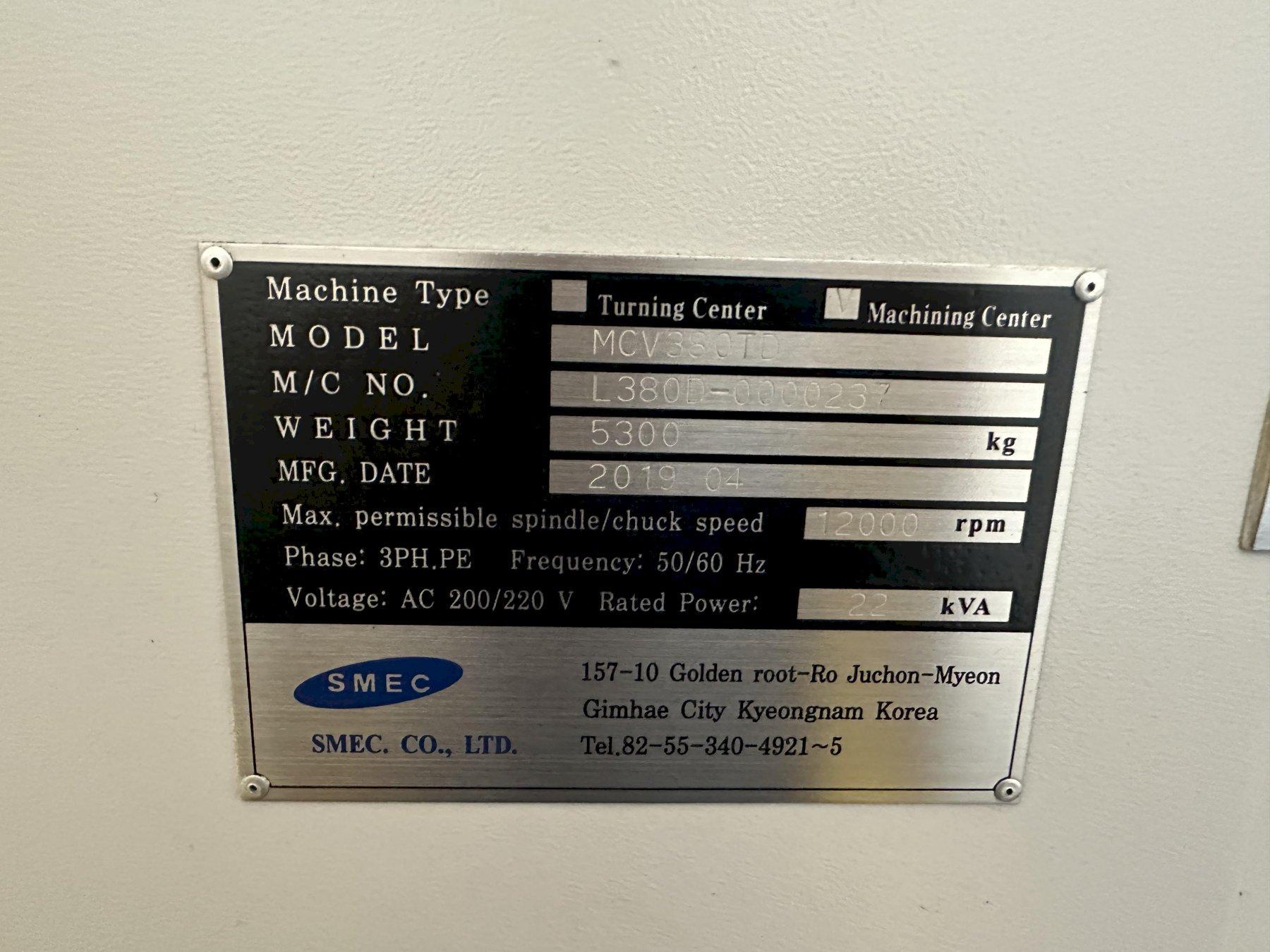

Manufacturer
SMEC

Type
Drilling & Tapping Centers

Condition
Not specified

Model
380TD

Stock #
6855

Year
2019

Request a Quote
CNC Control yes

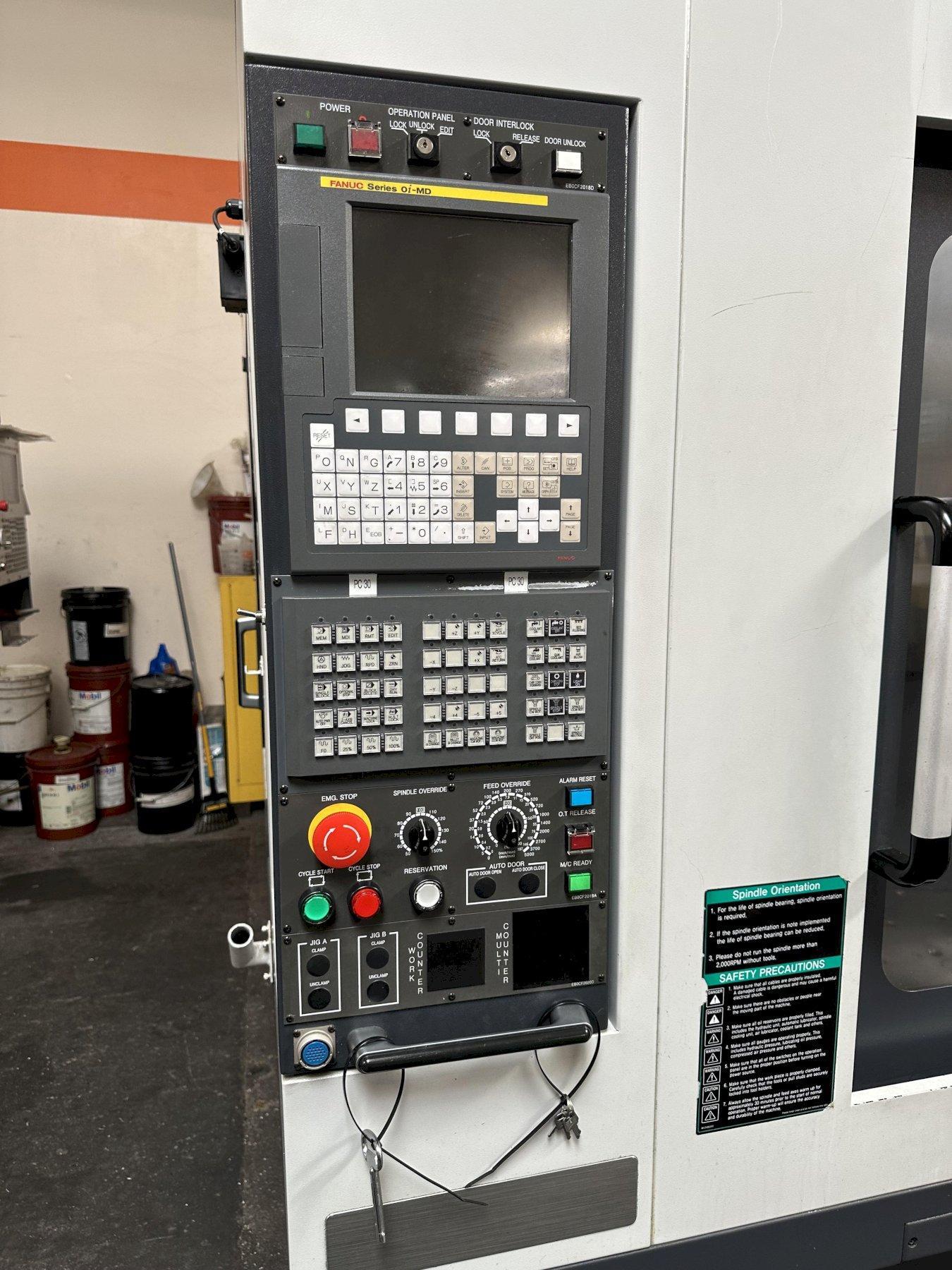

Type of CNC Control Fanuc O-iMD
# Axis 3
Table Size 16.54” X 23.62” Two Sided APC
Table Capacity 440 pounds
X-Axis Travel 21 inches
Y-Axis Travel 15 inches
Z-Axis Travel 14 inches
Spindle Speed 12,000 RPM
Spindle Taper BT30
Main Motor 7.5 HP

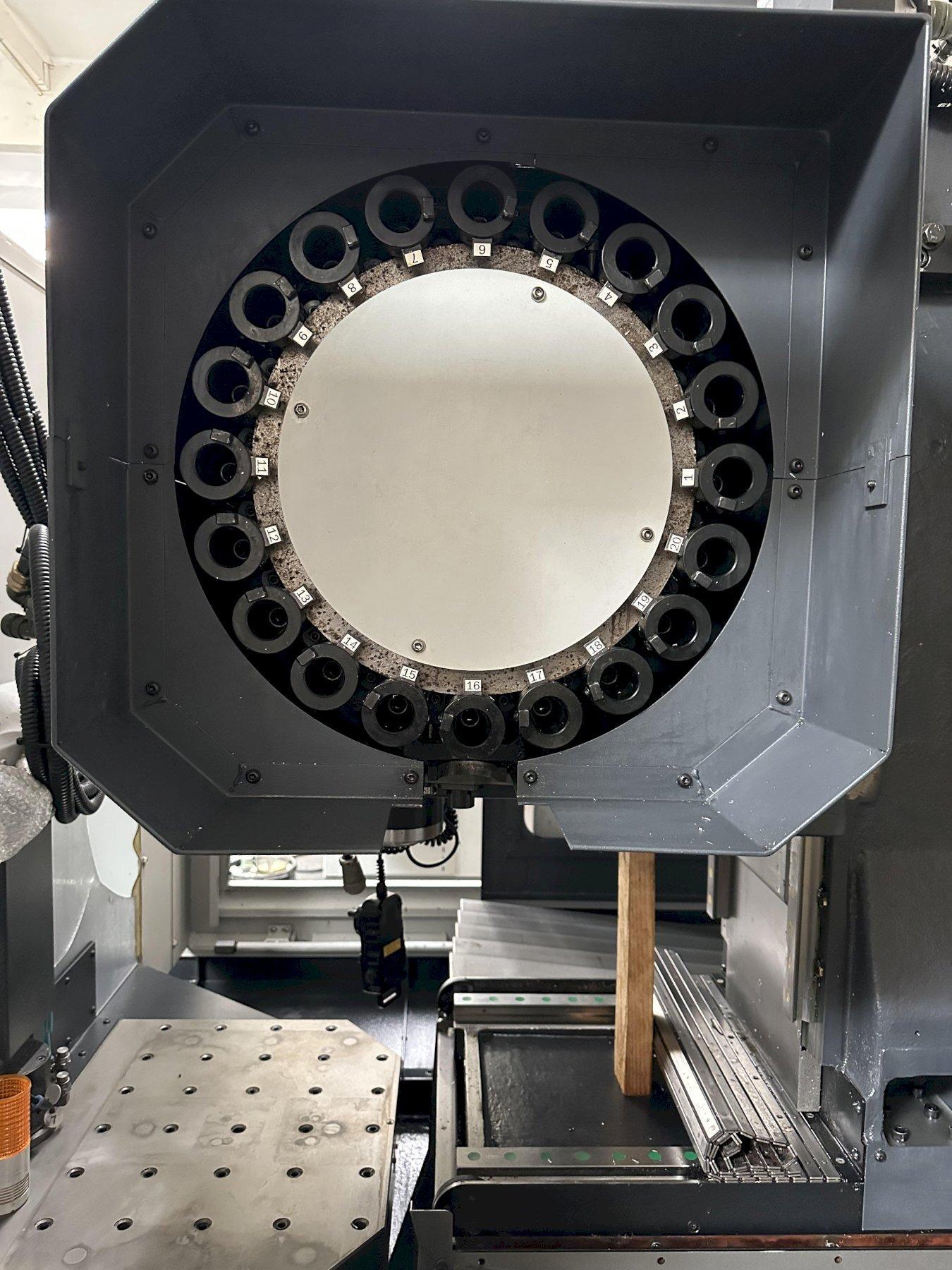

Tool Changer Capacity 20
X-Axis Feedrate 787 IPM
Y-Axis Feedrate 787 IPM
Z-Axis Feedrate 787 IPM
X-Axis Rapid Traverse Rate 1969 IPM
Y-Axis Rapid Traverse Rate 1969 IPM
Z-Axis Rapid Traverse Rate 1969 IPM
Coolant Thru Spindle yes
Dimensions 158” X 70” X 98”
Weight 9921 pounds

Equipped With

Samsung SMEC MCV 380TD VMC Fanuc O-iMD Controller, 16.54” X 23.62” X 20.50 Travels, Automatic Pallet Changer, 12,000 RPM Spindle, 20 Tools, Double Arm ATC, Rigid Tapping and Through Spindle Coolant. - Make Offer Bank Repo


Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
