| Longitudinal | 33.46 inches |
| Transverse | 23.62 inches |
| Vertical | 23.62 inches |
| Table Size (LxW) | 41.33" x 23.62" |
| Feed: X/Y/Z | 49.21 ft/min-1 |
| Rapid speed X/Y/Z | 131.23 ft/min-1 |
| Feed force X/Y/Z | 4200 N |
| Spindle 100% ED, S1 | 20,000 rpm, HSK-A 63 |
| Tool Magazine Capacity | 30 Pocket HSK-63 |
| Max. tool length | 11.81 inches |
| Max. tool diameter | 3.14 inches |
| Max. tool weight | 17.83 pounds |
| Dimensions (LxWxH) | 87.79" x 106.92" x 119.37" |
| Weight | 15432 pounds |

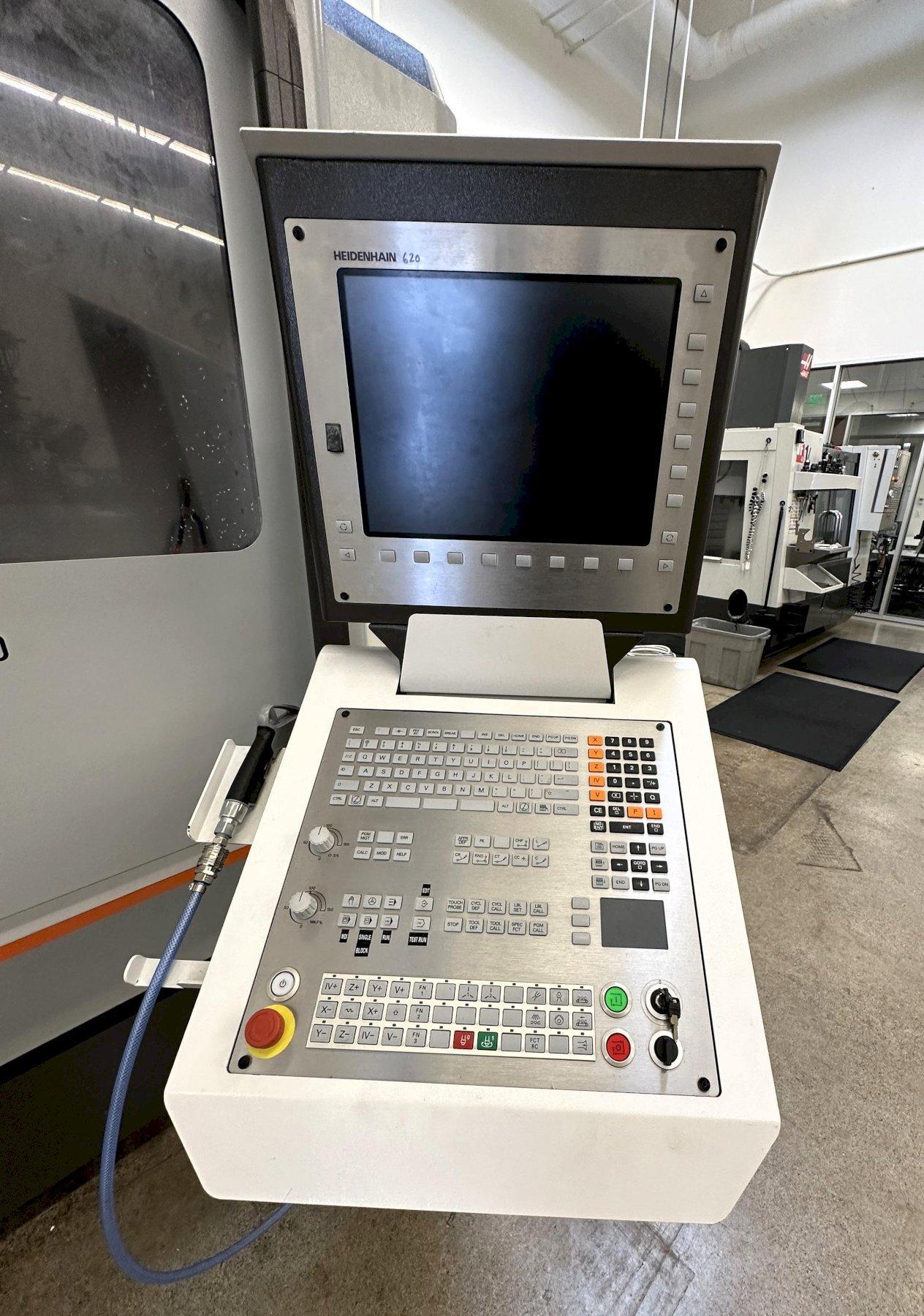

| Control | Heidenhain TNC 620 |

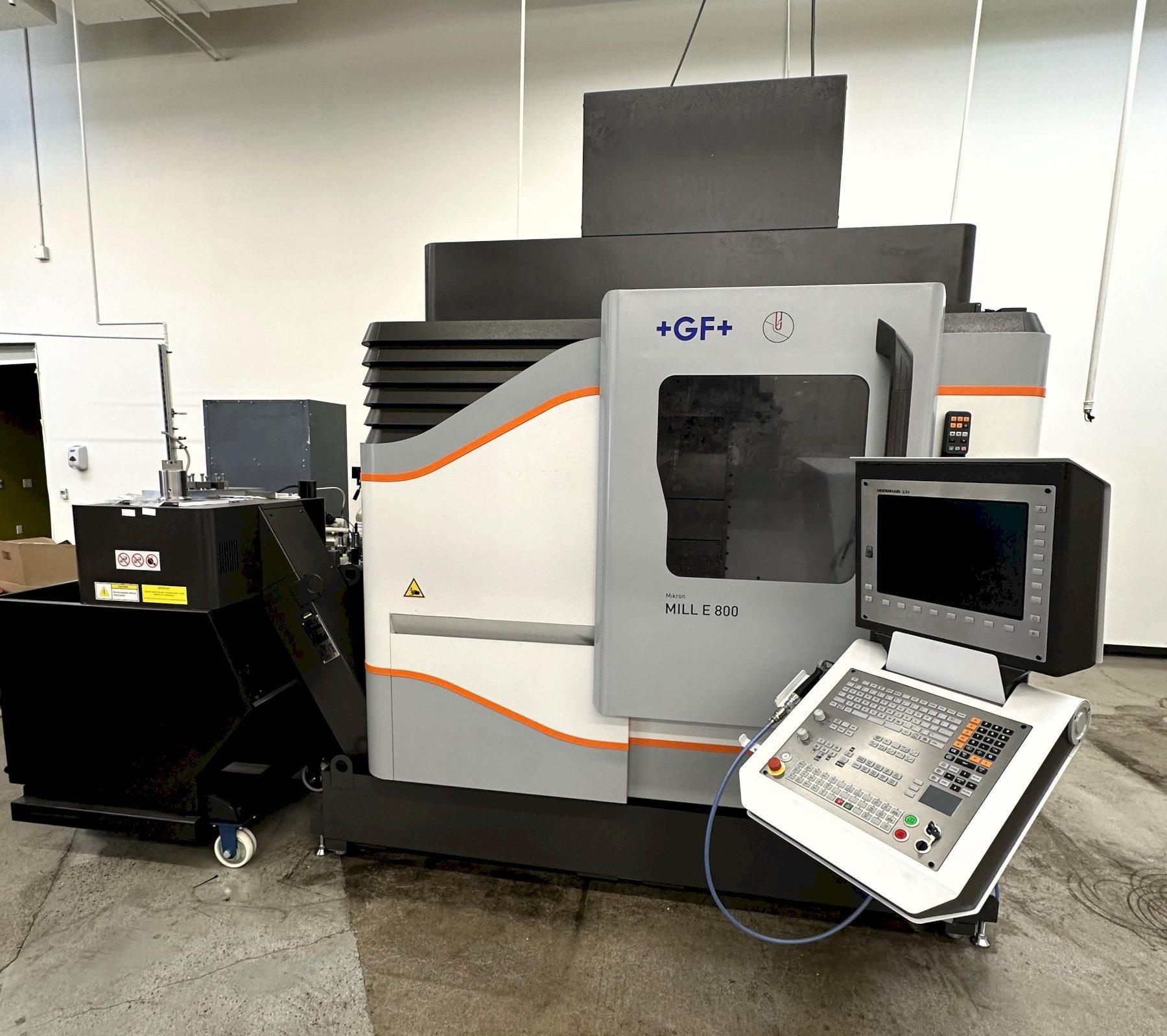

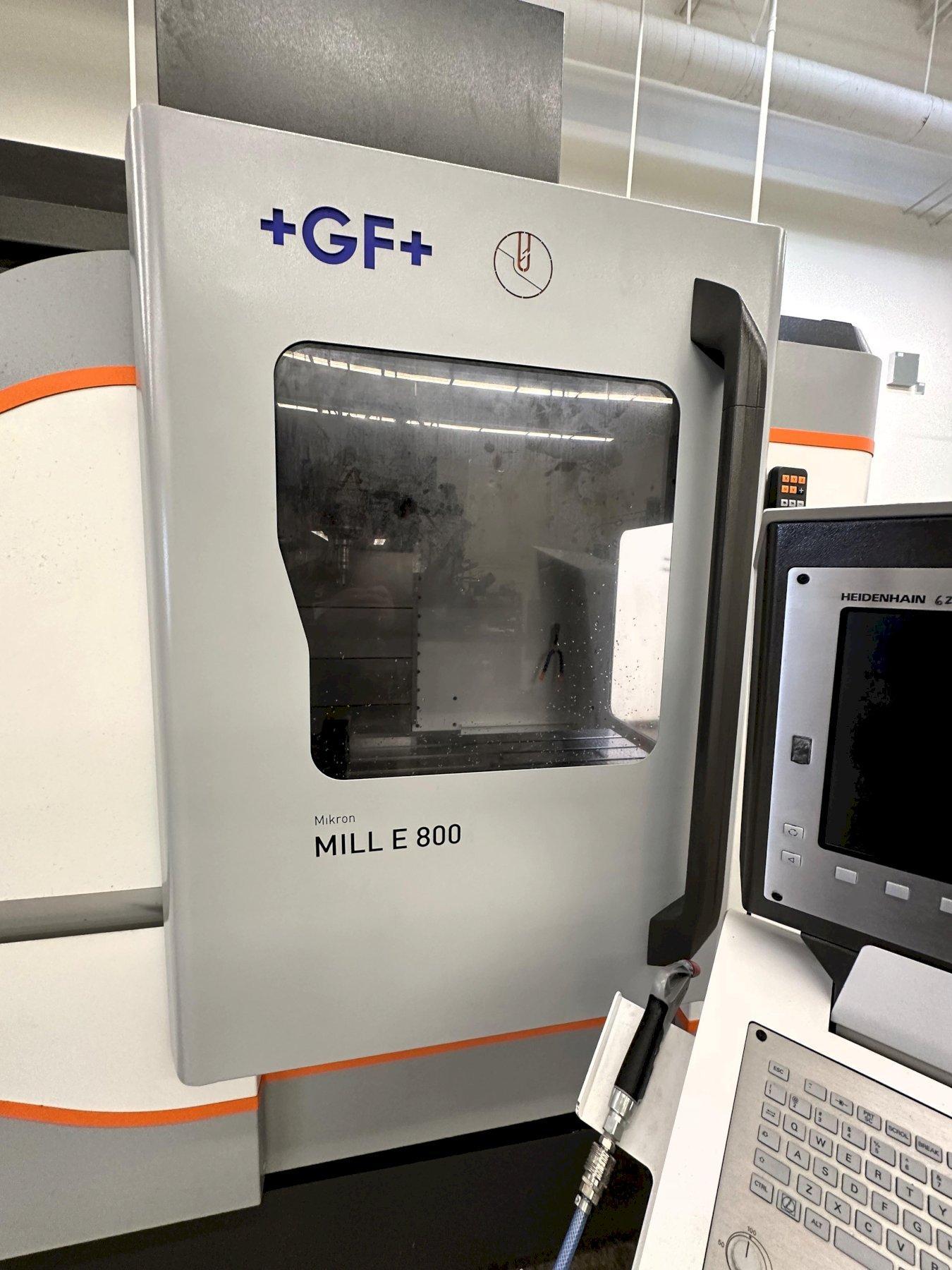

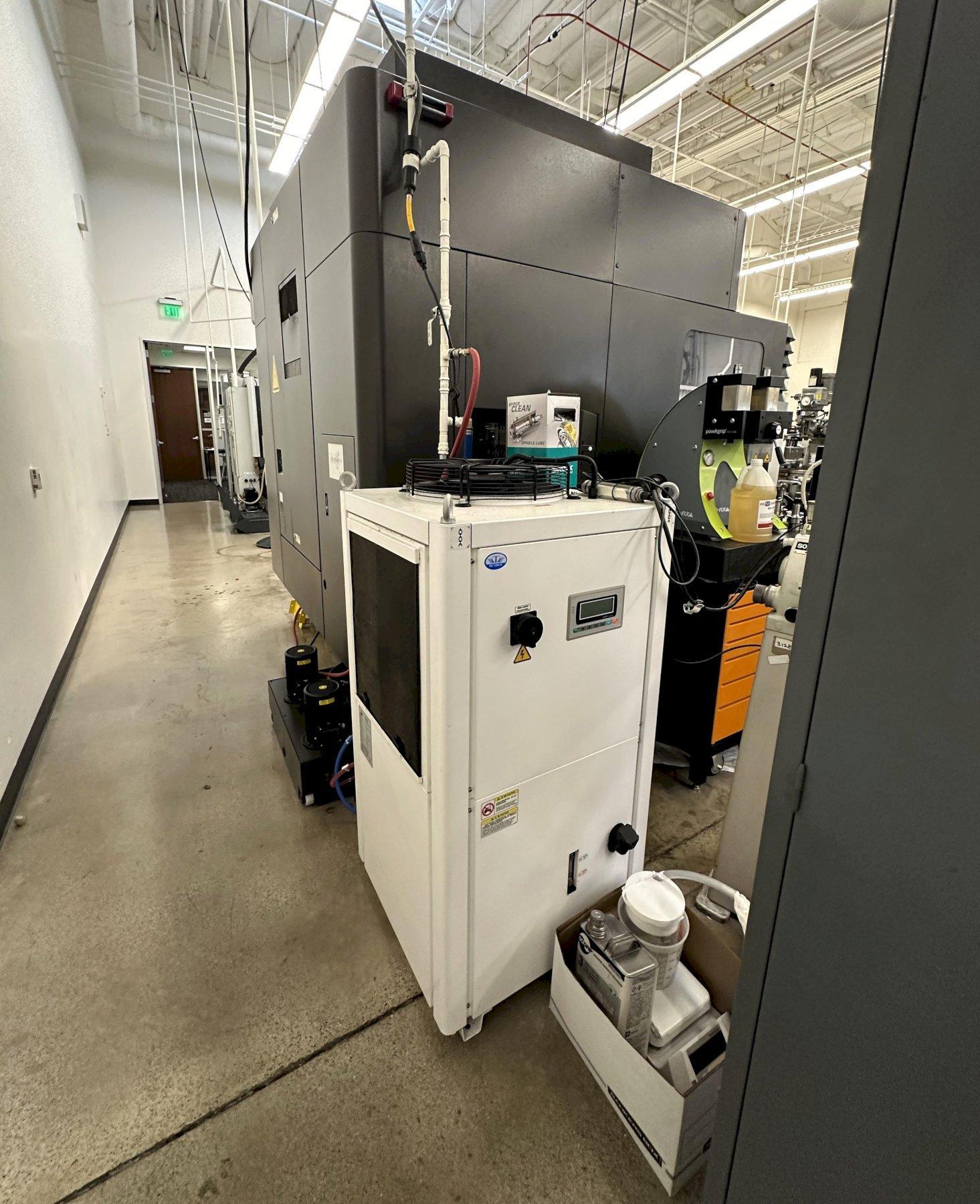

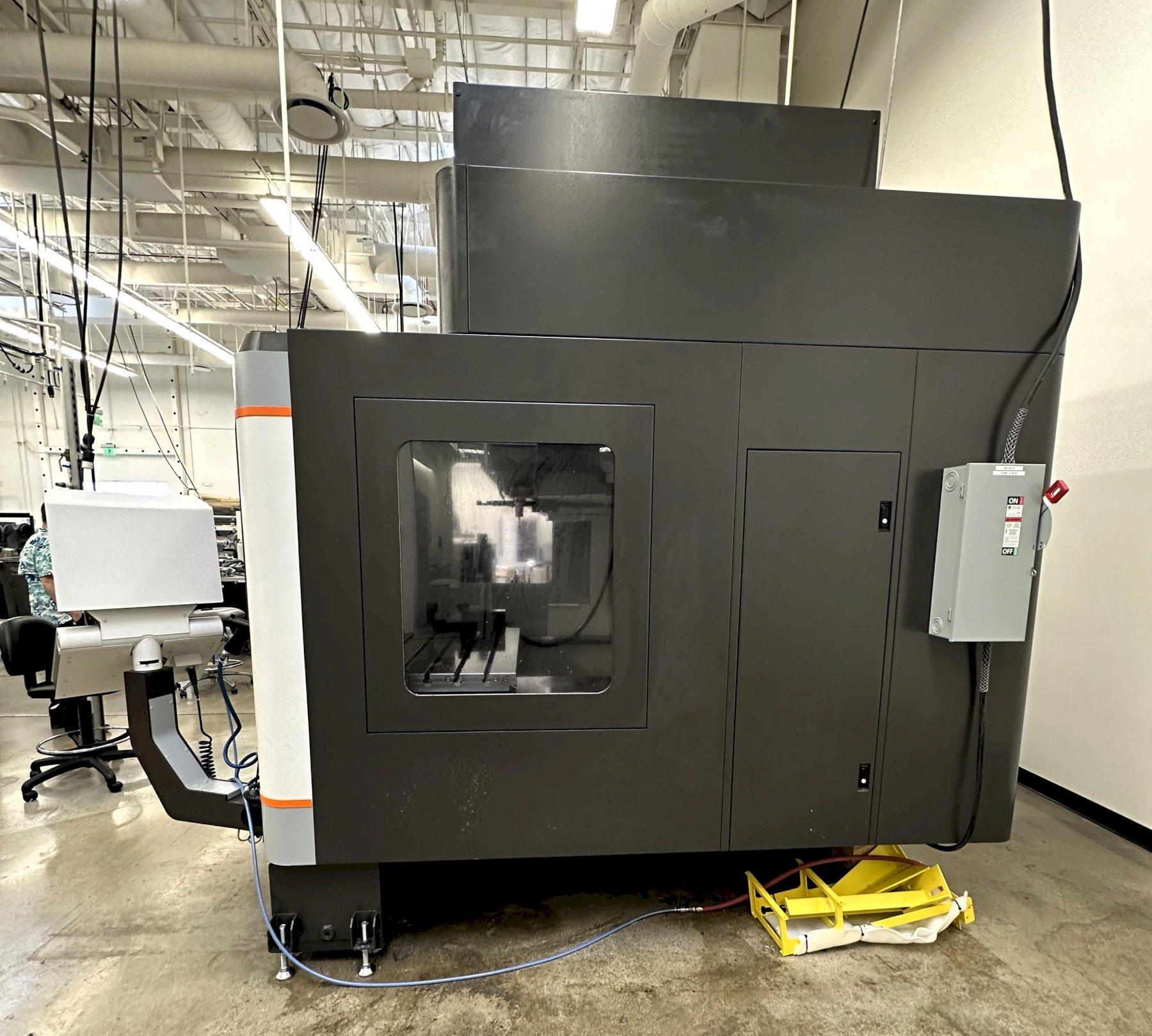

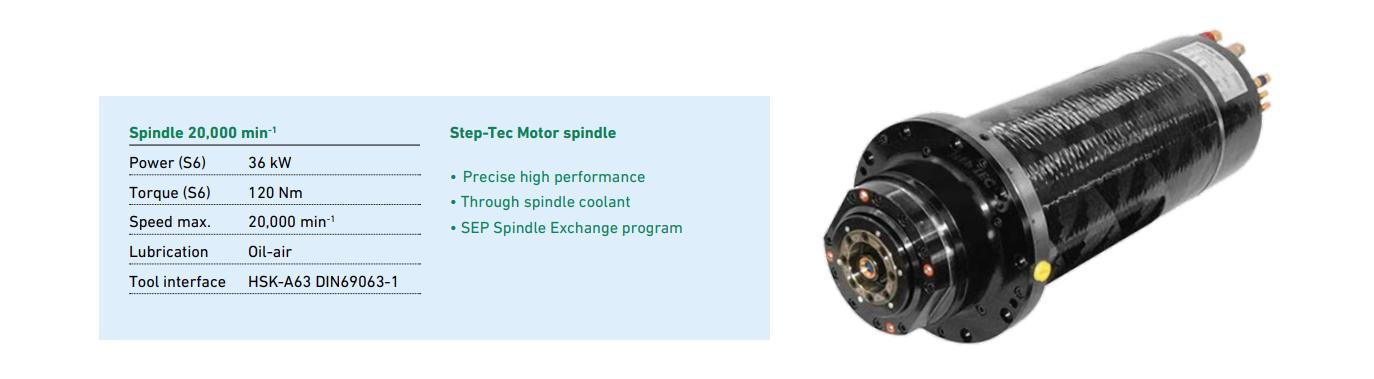

GF Mikron Mill E 800 Vertical 3-Axis Machining Center 2021 equipped with Chiller, Coolant Tank, Chip Conveyor, 20k RPM Step-Tec Motor Spindle, Laser Tool Measuring System, Lift-up Chip Conveyor, Infrared Touch Probe, Glass Scales
