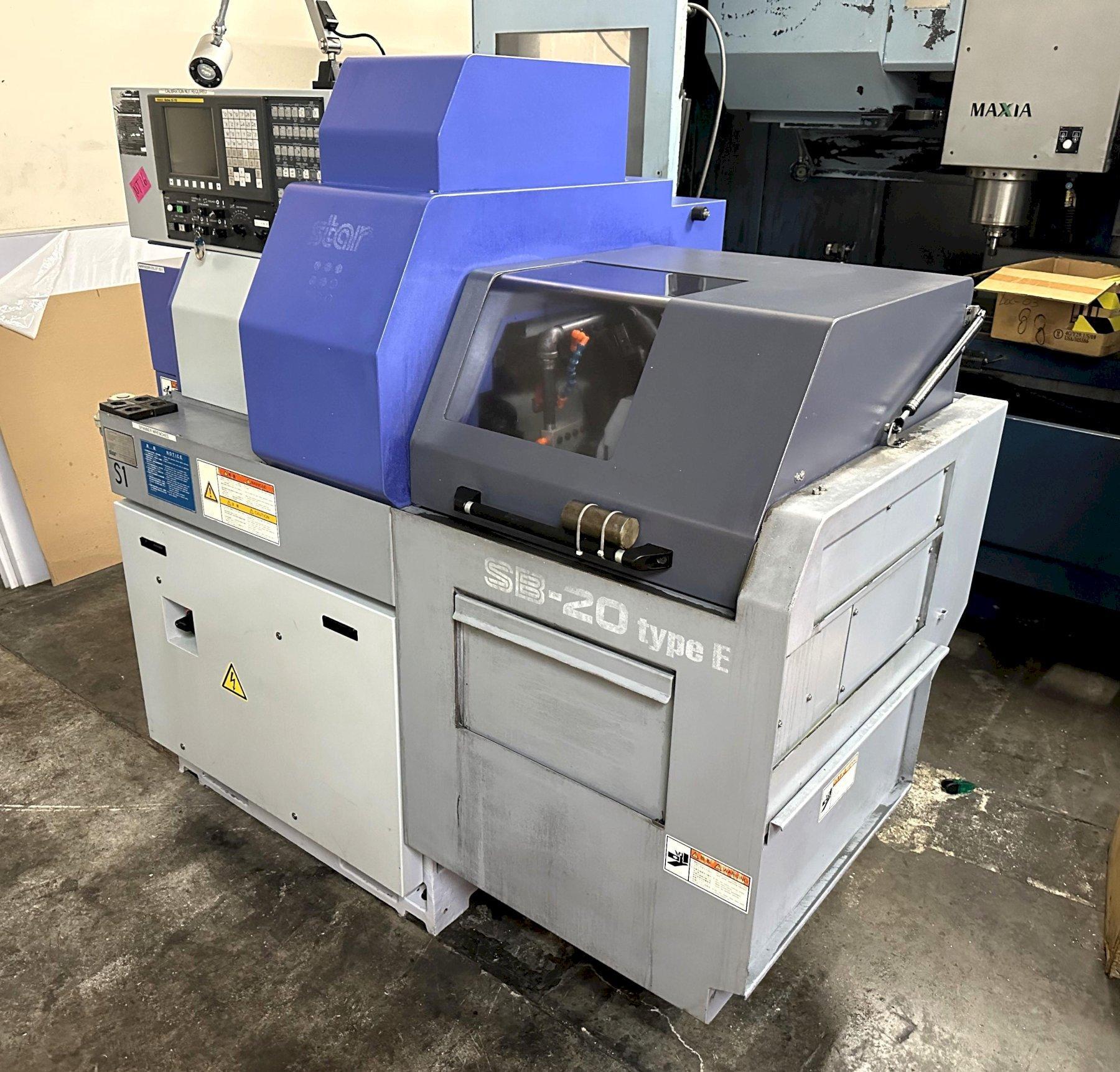

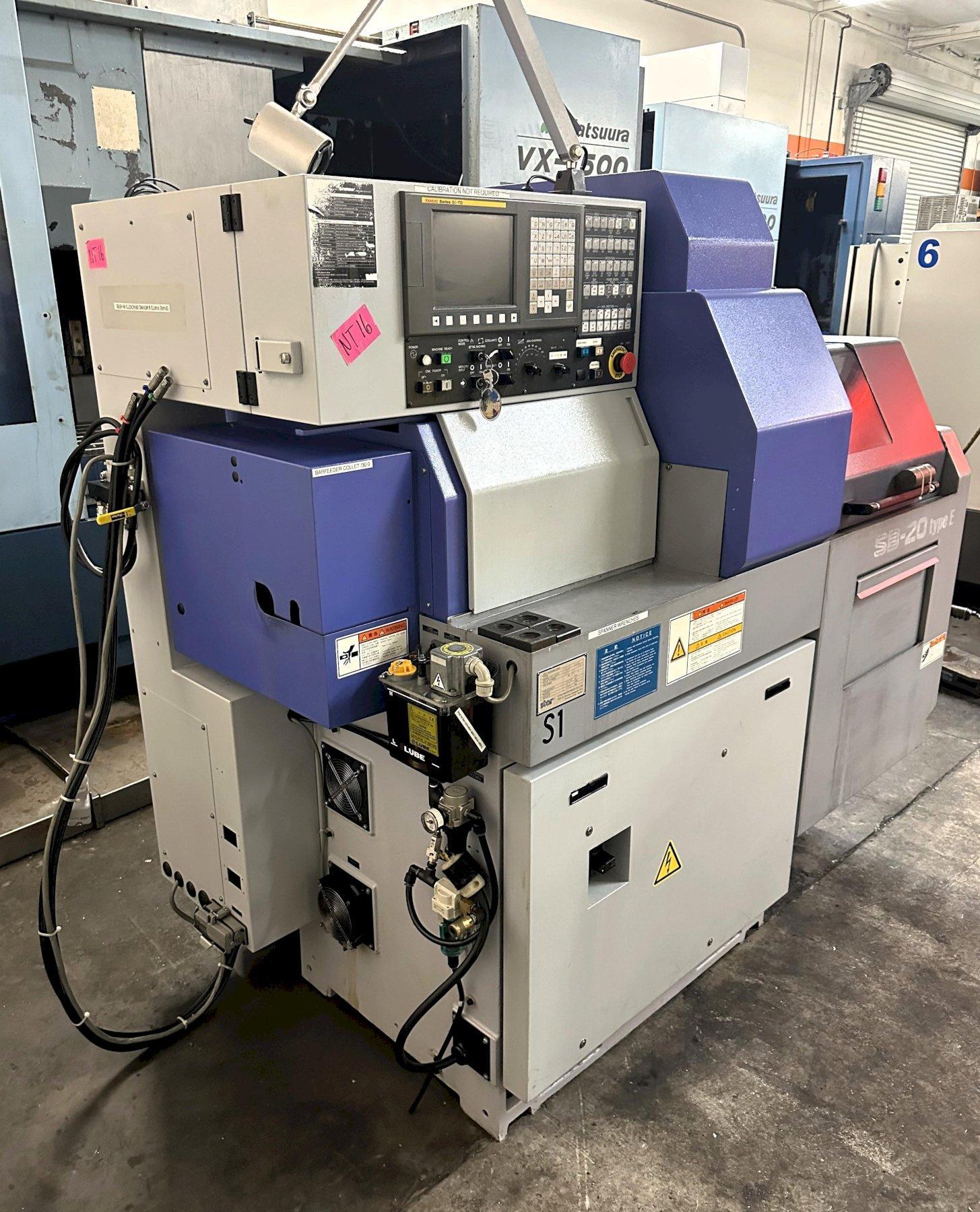

| CNC Control | Fanuc oi-TD Control |
| Max. Machining Diameter | Φ20mm |
| Max. Headstock Stroke | 155mm |

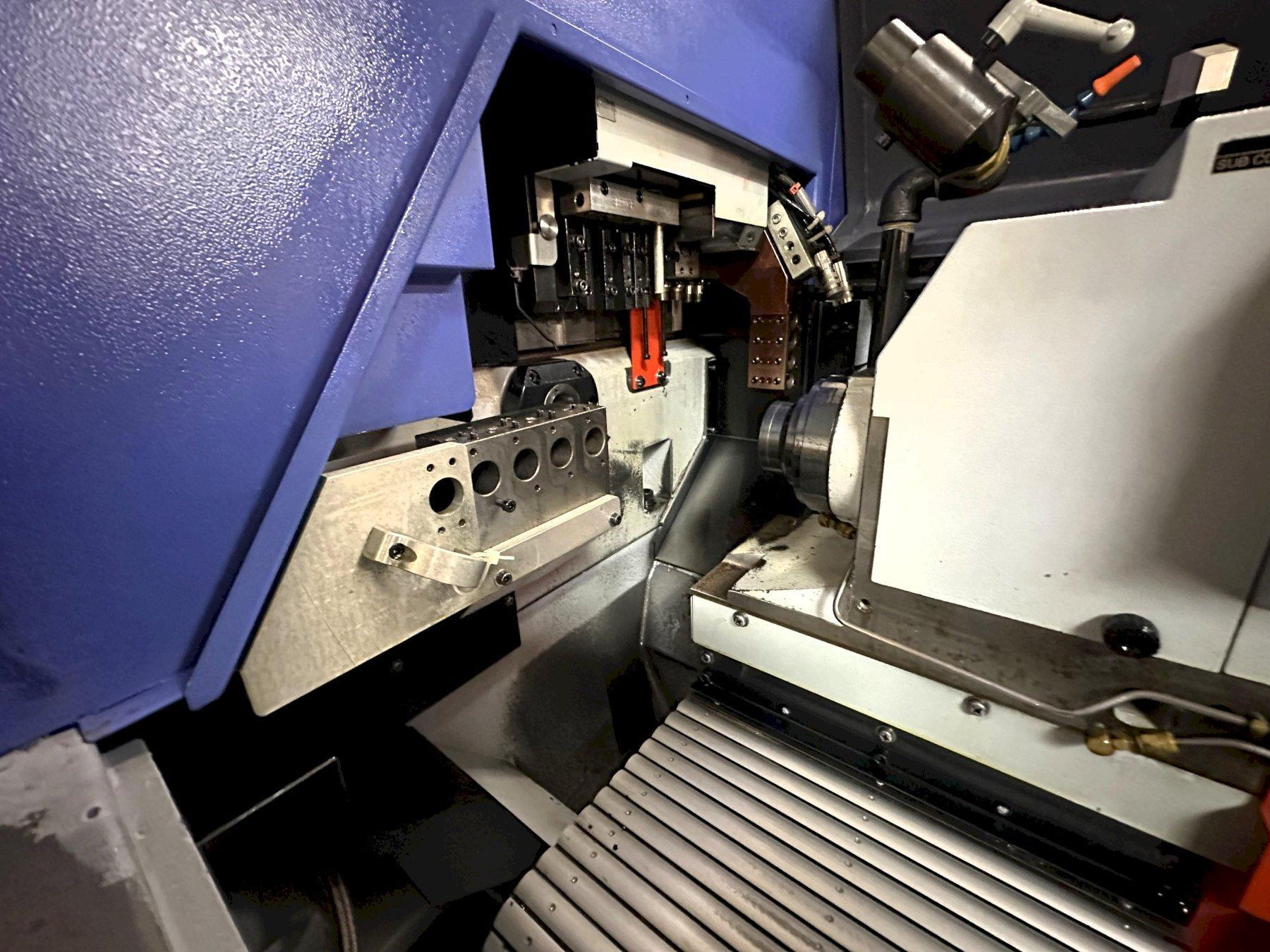

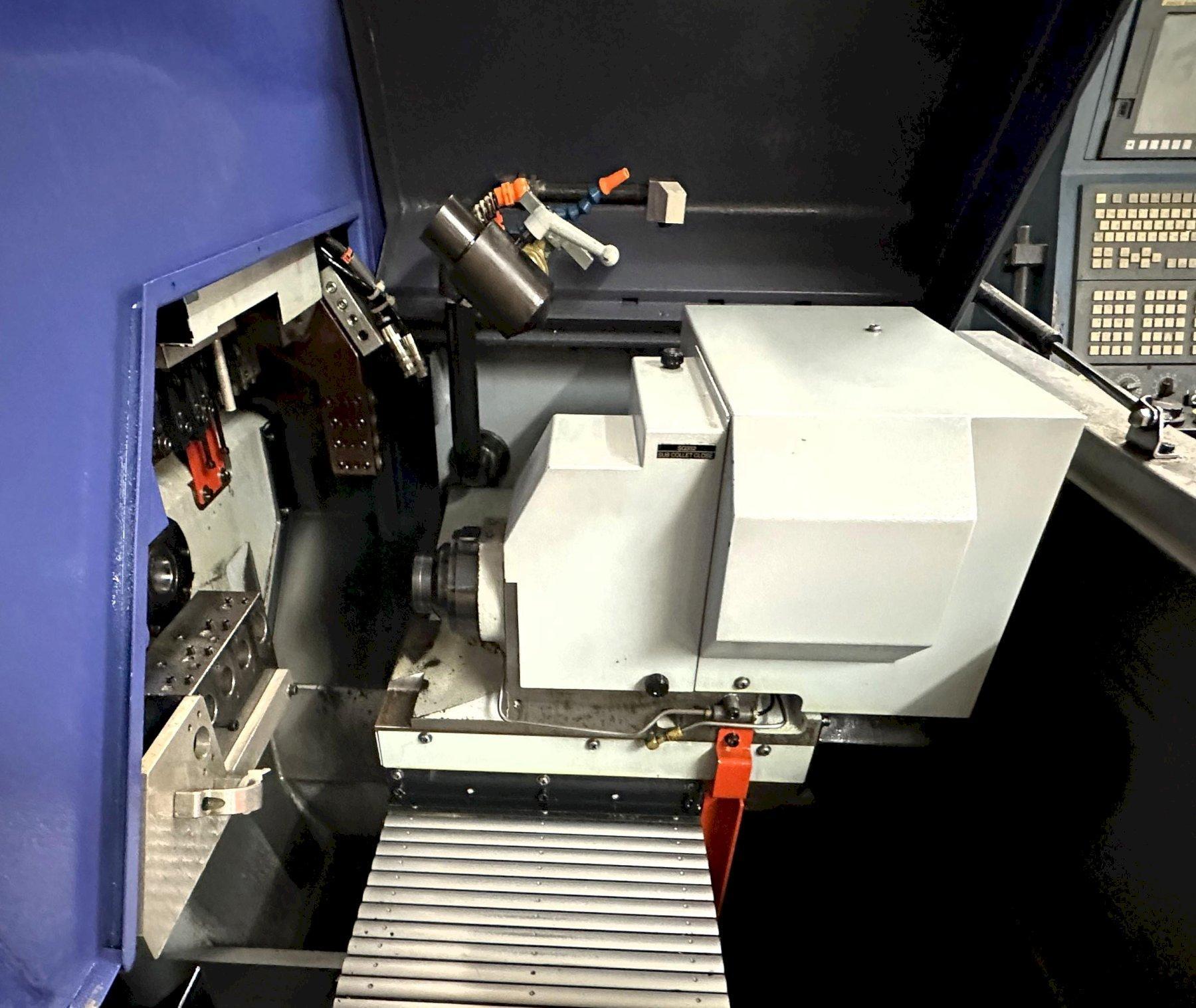

| Number of Tools | 6 Station Tool Holder / 4 Spindle Cross Drilling Unit / 4 Spindle Sleeve Holders / Back 8 Static |
| Main Spindle Indexing Angle | C-Axis Control |
| Main Spindle Speed | Max. 10,000min⁻¹ |
| Sub Spindle Indexing Angle | C-Axis Control |
| Sub Spindle Speed | Max. 9,000min⁻¹ |

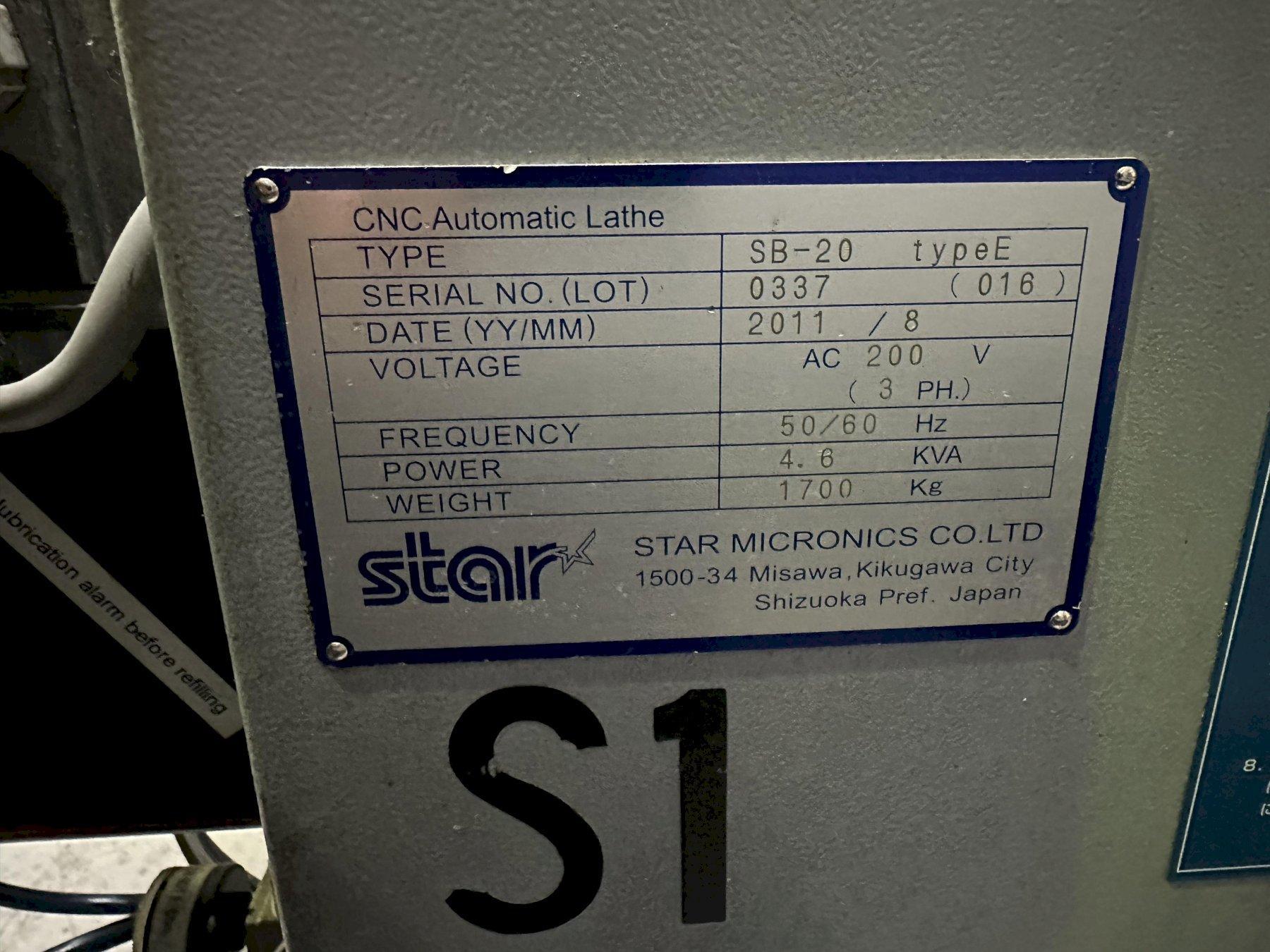

| Voltage | AC 200 V (3 Phase) |
| Frequency | 50/60 Hz |
| Power | 4.6 KVA |

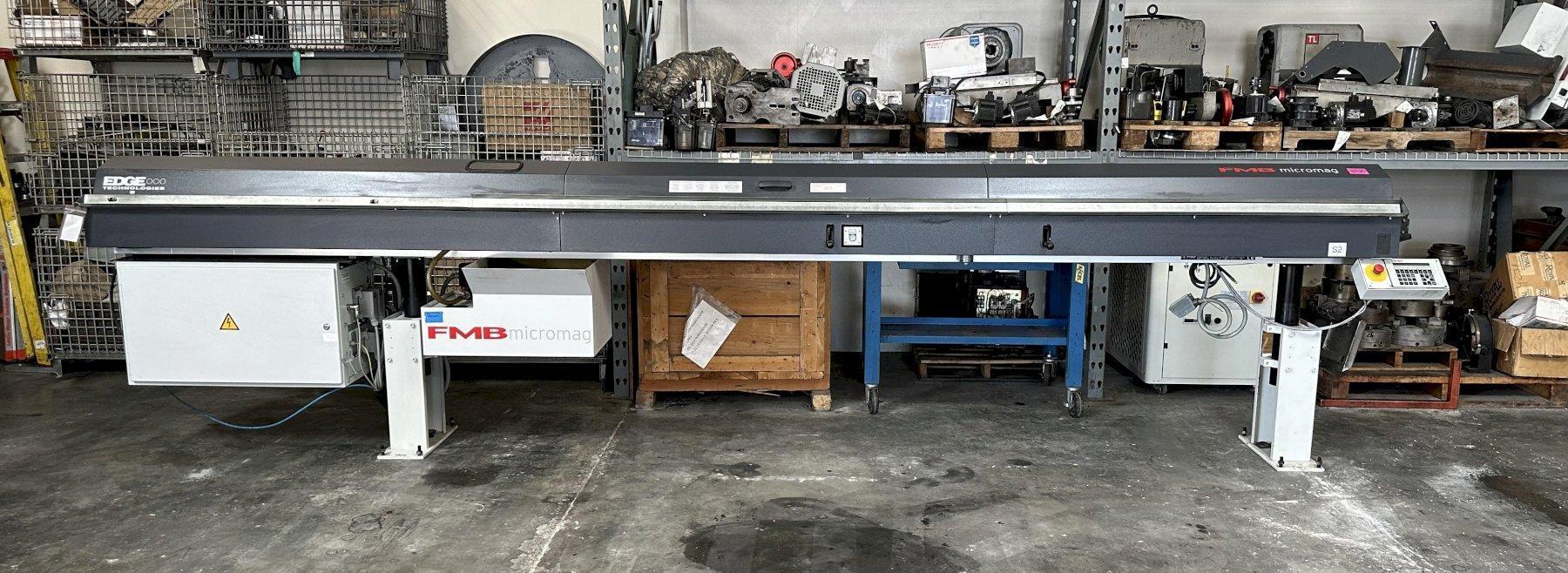

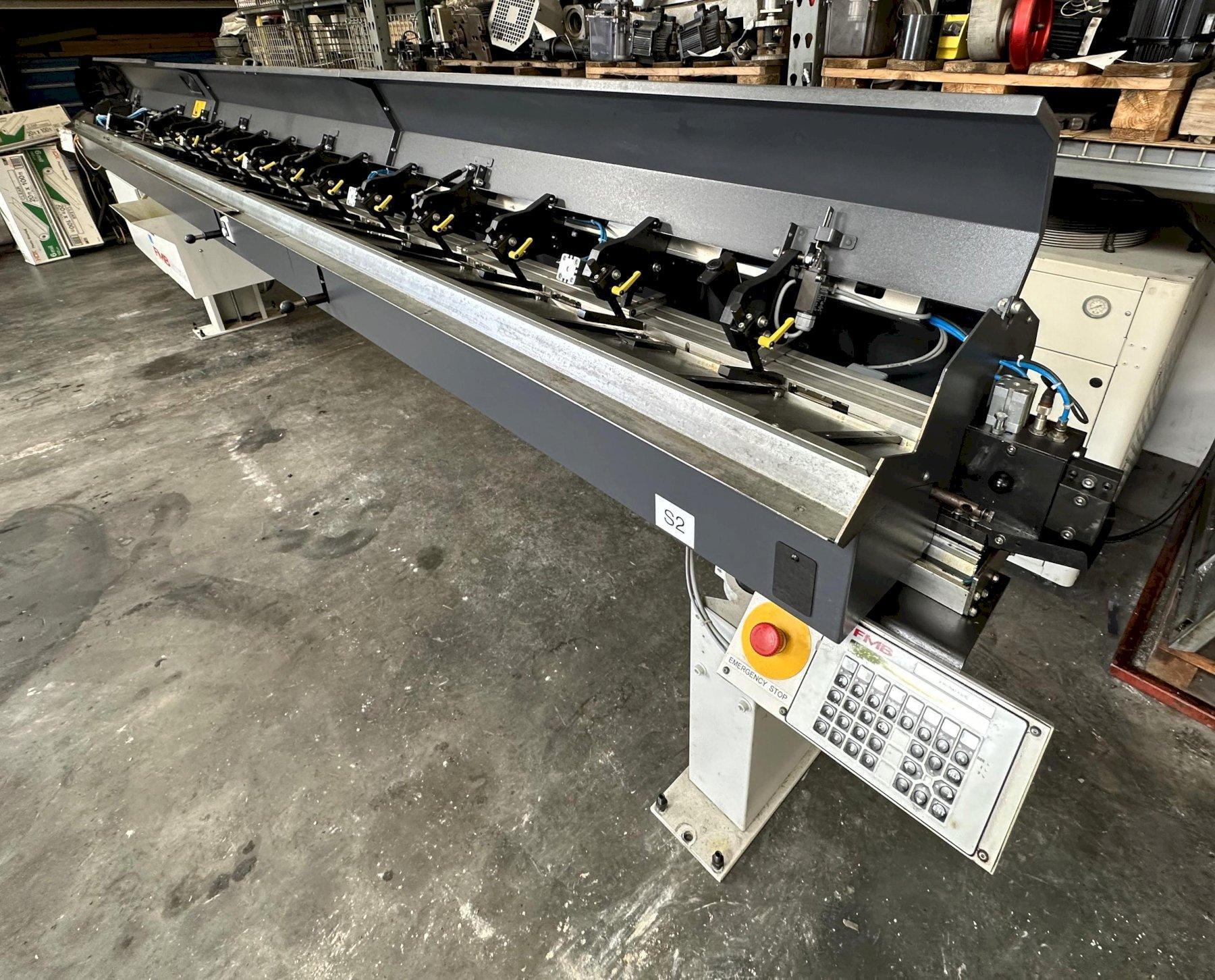

| Dimensions (LxWxH) | Approx. Machine: 75" x 45" x 69" Approx Barfeeder: 216" x 24" x 48" |
| Weight | 5500 pounds |
Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale.
ACT Machinery
2424 Cypress Way
Fullerton, Ca 92831
Financing Available / Se Habla Español
Before buying, let us know if you need shipping quotes. _714.441.1992.
