| CNC Control |
yes |
| Type of CNC Control |
HAAS |
| Platter Diameter |
19.7 inches |
| Max. Weight on Platter |
660 lbs. |
| # of Axis |
5 |
| X |
30 inches |
| Y |
20 inches |
| Z |
20 inches |
| B-Axis Travels |
120 Deg. To 35- Deg. |
| B-Axis Speed |
50 Deg. / Sec. |
| C-Axis Travels |
360 Deg. |
| C-Axis Speed |
50 Deg. / Sec. |
| Min.-Max. Spindle Nose-Platter |
4" - 24" |
| RPM |
10000 |
| Power |
30 horsepower |
| Max. Cutting |
650 IPM |
| Rapid Feedrates (X,Y,Z) |
900 IPM |
| Max. Tool Diameter |
2.5 inches |
| Max. Tool Length |
12 inches |
| Max. Tool Weight |
12 pounds |
| Tool Time - Tool Time |
2.8 sec. |
| Chip To Chip |
3.6 sec. |
| Dimensions |
168" x 93" x 110" |
| Weight |
14250 pounds |
Equipped With

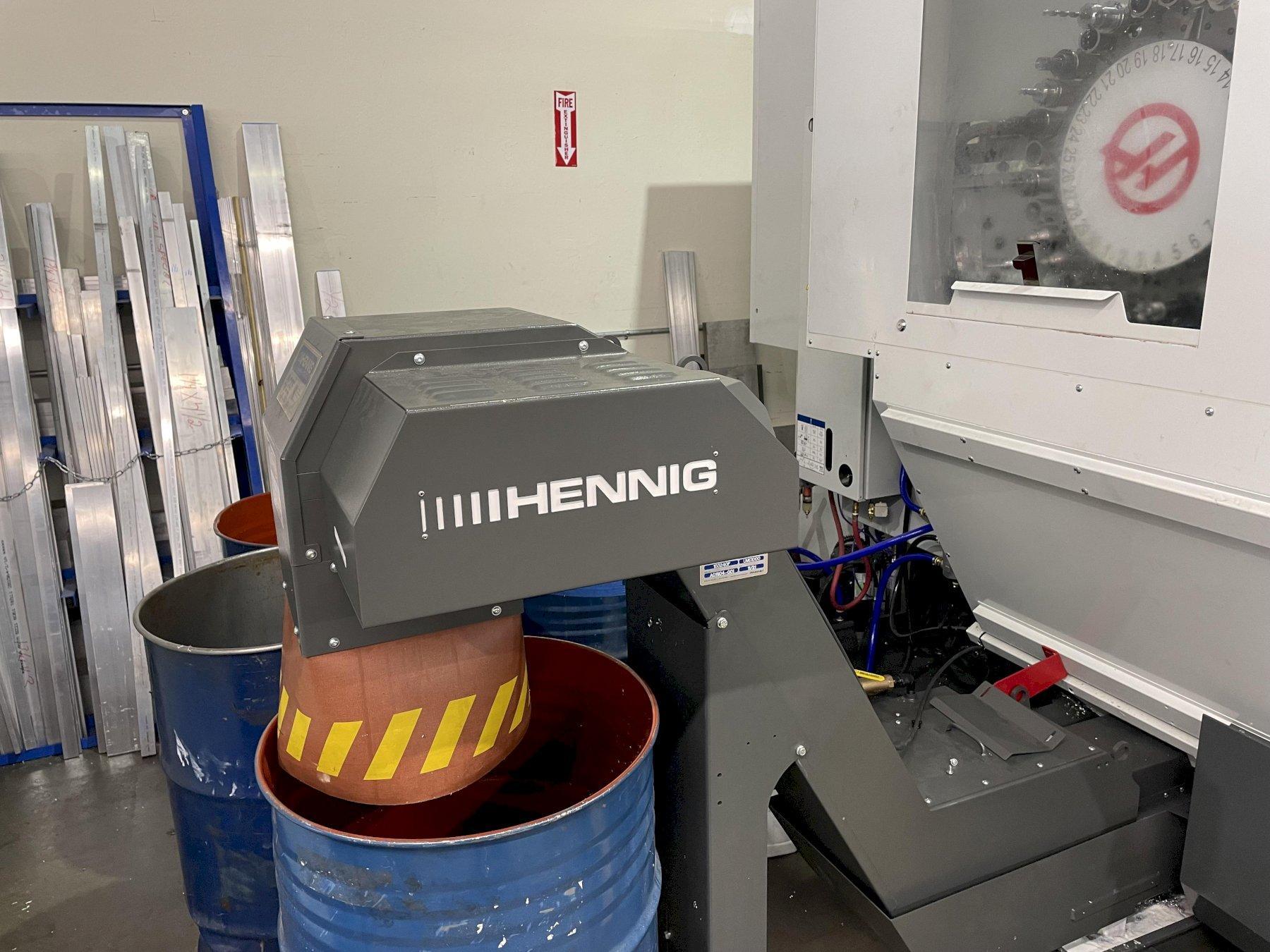

Haas CNC Control, 5th Axis,10k RPM Spindle, 30-SMTC, Through Spindle Coolant, High Speed Machining, Probing, Chip Conveyor, and Coolant Tank.
